Live Aircraft Traffic Viewer ~ Anchorage, Alaska

Aircraft locations are determined using the Automatic Dependent Surveillance - Broadcast (ADS-B), which operates in the UHF band (L band) at 1090 MHz

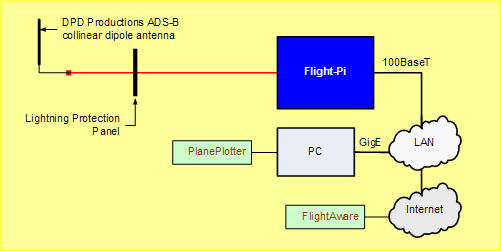

The equipment setup consists of a Radar Gadgets PlaneGadget receiver, DPD Productions ADS-B collinear dipole antenna with advertised 9.0 dBi gain, accessories and a PC running COAA PlanePlotter software as shown in the block diagram below.

Antenna location:    61-11-57.50N, 149-57-23.92W
Antenna elevation:  21 m AMSL (to antenna center)

Click here for system transmission budget diagram
