Long Wavelength Array Antenna Power Coupler ~ LWAPC

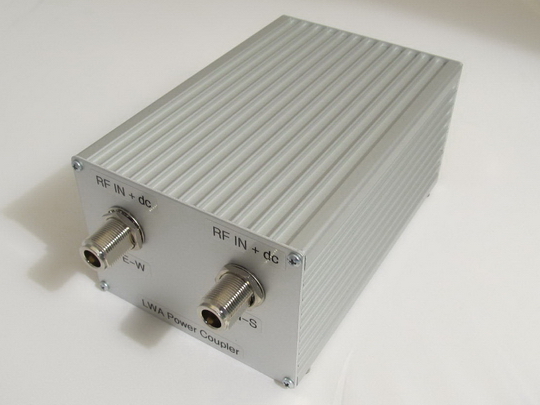

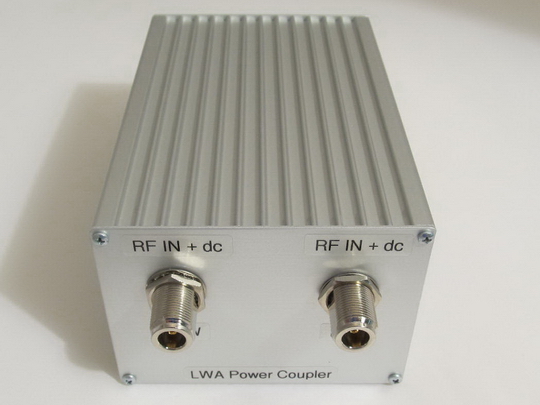

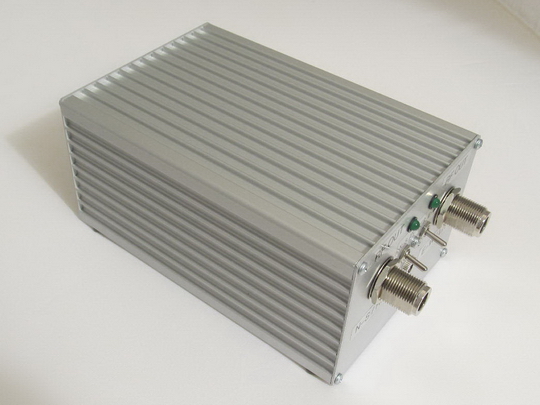

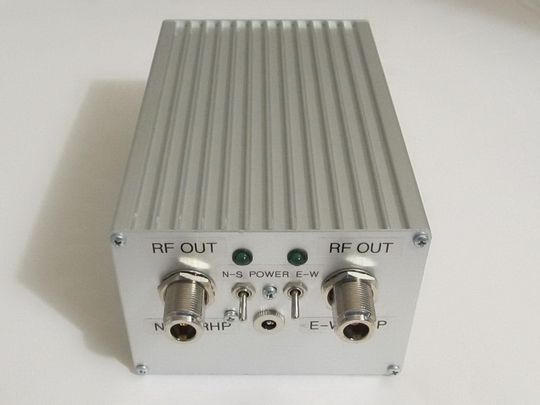

The LWA Power Coupler (LWAPC) provides power to the active balun assembly in the Long Wavelength Array crossed-dipole antenna through the coaxial transmission lines. The LWAPC has two identical RF circuits and is inserted between the antenna assembly and the receivers. It optionally includes a quadrature coupler for discrimination of circular polarizations received by the linearly polarized crossed-dipoles. The LWAPC uses high-quality commercial RF modules and has the same form factor as the Callisto instrument.

Click here to return to LWA Order Info page or to order

Documentation: Download the LWAPC Instructions

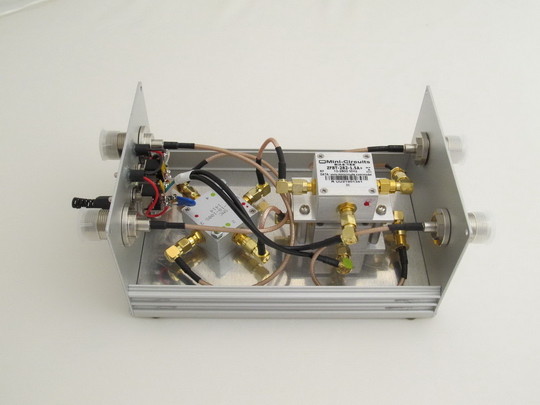

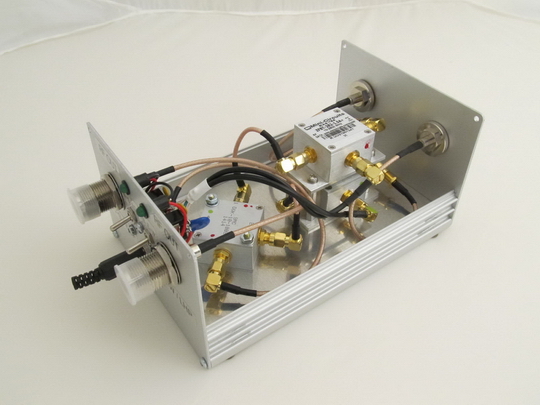

Shown with the optional quadrature coupler

Click here to order

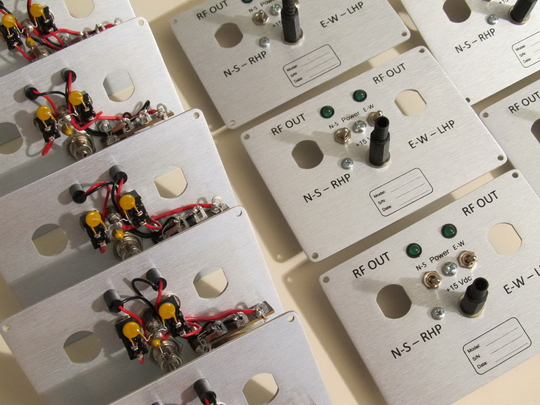

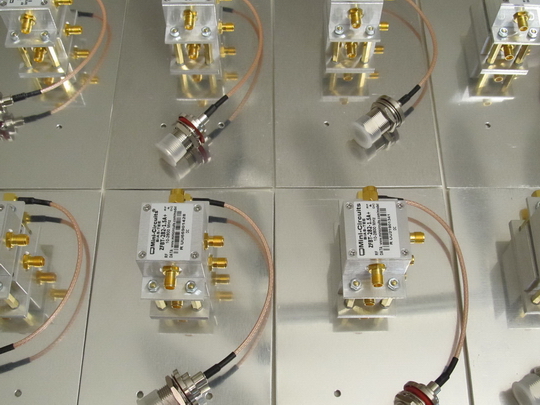

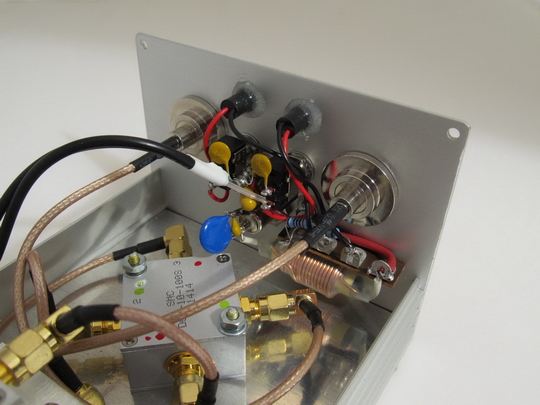

Images during production:
